PRODUCT

Camera

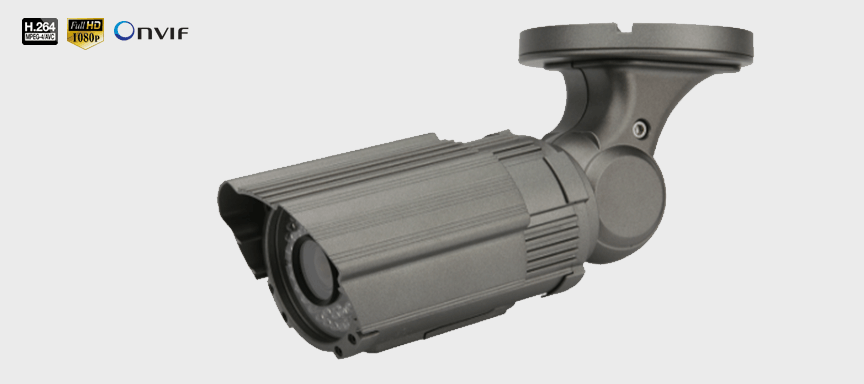

UERON-7000I

ㆍMegapixel Progressive Scan CMOS
ㆍ1920x1080 Full HD
ㆍSingle, Dual, Triple Steam per Channel(H-264, MPEG-4, MJEG)
ㆍ3MP Auto Focus Lens 5~60mm
ㆍAGC, AE, AWB, AF, 2D/3D DNR, HLC, Sense-up
ㆍPower over Ethernet (IEEE 802.3af)
ㆍWDR (Wide Dynamic Range)
ㆍTDN Removable IR Cut Filter
ㆍPrivacy Masking
ㆍIR LED 3mm 48 PCS, 10mm 12PCS
ㆍIP66

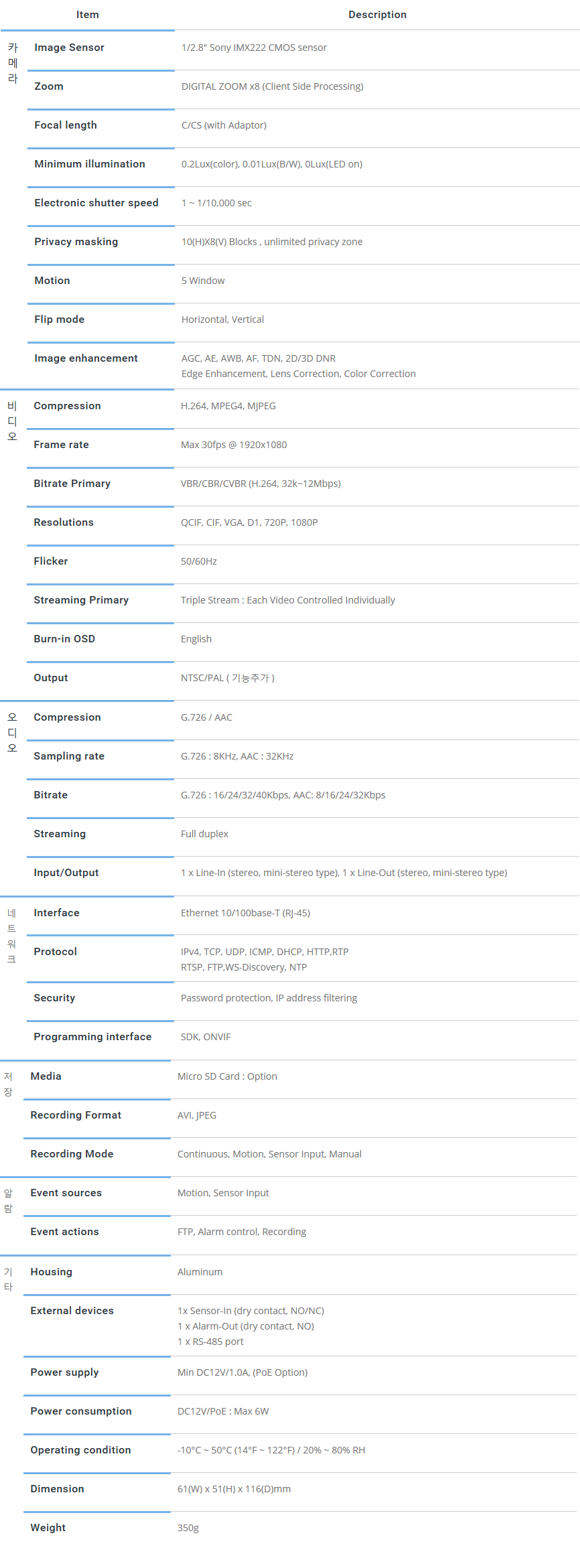

Specifications

Item		Description
카 메 라	Image Sensor	1/2.8" Sony IMX222 CMOS sensor
	Zoom	DIGITAL ZOOM x8 (Client Side Processing)
	Focal length	C/CS (with Adaptor)
	Minimum illumination	0.2Lux(color), 0.01Lux(B/W), 0Lux(LED on)
	Electronic shutter speed	1 ~ 1/10,000 sec
	Privacy masking	10(H)X8(V) Blocks , unlimited privacy zone
	Motion	5 Window
	Flip mode	Horizontal, Vertical
	Image enhancement	AGC, AE, AWB, AF, TDN, 2D/3D DNR Edge Enhancement, Lens Correction, Color Correction
비 디 오	Compression	H.264, MPEG4, MJPEG
	Frame rate	Max 30fps @ 1920x1080
	Bitrate Primary	VBR/CBR/CVBR (H.264, 32k~12Mbps)
	Resolutions	QCIF, CIF, VGA, D1, 720P, 1080P
	Flicker	50/60Hz
	Streaming Primary	Triple Stream : Each Video Controlled Individually
	Burn-in OSD	English
	Output	NTSC/PAL ( 기능추가 )
오 디 오	Compression	G.726 / AAC
	Sampling rate	G.726 : 8KHz, AAC : 32KHz
	Bitrate	G.726 : 16/24/32/40Kbps, AAC: 8/16/24/32Kbps
	Streaming	Full duplex
	Input/Output	1 x Line-In (stereo, mini-stereo type), 1 x Line-Out (stereo, mini-stereo type)
네 트 워 크	Interface	Ethernet 10/100base-T (RJ-45)
	Protocol	IPv4, TCP, UDP, ICMP, DHCP, HTTP,RTP RTSP, FTP,WS-Discovery, NTP
	Security	Password protection, IP address filtering
	Programming interface	SDK, ONVIF
저 장	Media	Micro SD Card : Option
	Recording Format	AVI, JPEG
	Recording Mode	Continuous, Motion, Sensor Input, Manual
알 람	Event sources	Motion, Sensor Input
알 람	Event actions	FTP, Alarm control, Recording
기 타l	Housing	Aluminum
	External devices	1x Sensor-In (dry contact, NO/NC) 1 x Alarm-Out (dry contact, NO) 1 x RS-485 port
	Power supply	Min DC12V/1.0A, (PoE Option)
	Power consumption	DC12V/PoE : Max 6W
	Operating condition	-10°C ~ 50°C (14°F ~ 122°F) / 20% ~ 80% RH
	Dimension	61(W) x 51(H) x 116(D)mm
	Weight	350g
